What is a medical defibrillator?
A medical defibrillator, also known as a defibrillator, is a device that delivers an electrical shock to the heart in order to restore its normal rhythm. It is used to treat a condition called cardiac arrhythmia, which is an abnormal heart rhythm that can cause the heart to stop beating effectively and lead to sudden cardiac arrest.
There are two types of defibrillators: external and internal. External defibrillators are used outside the body and are commonly found in emergency medical services (EMS) settings, hospitals, and public places. They consist of paddles or electrodes that are placed on the chest and deliver an electric shock to the heart through the skin.
Internal defibrillators, on the other hand, are implanted devices that are placed inside the body. They are typically used in patients who have a high risk of sudden cardiac arrest and can detect abnormal heart rhythms and deliver a shock directly to the heart to restore its normal rhythm.
Defibrillators are critical tools for treating cardiac arrhythmia and saving lives in emergency situations. However, they should only be used by trained medical professionals, as improper use can be dangerous or even deadly.
Overview
| Place of Origin: | Jiangsu, China |
| Brand Name: | SUSMED |
| Model Number: | 7 inches (17.7 cm) diagonally |
| Disinfecting Type: | EOS |
| Properties: | Medical Materials & Accessories |
| Size: | 7 inches (17.7 cm) diagonally |
| Stock: | Yes |
| Shelf Life: | 3 years |
| Material: | PVC |
| Quality Certification: | ce |
| Instrument classification: | Class II |
| Safety standard: | EN 149 -2001+A1-2009 |
| Product name: | Medical Equipment Portable Monophasic Biphasic AED Defibrillator |
| Certificate: | CE ISO |
| Color: | White |
Supply Ability
Supply Ability:5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details:Carton
Port:shanghai

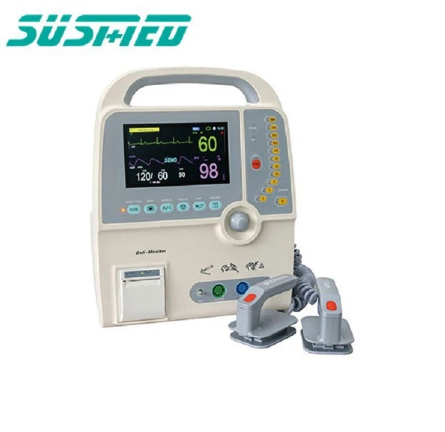

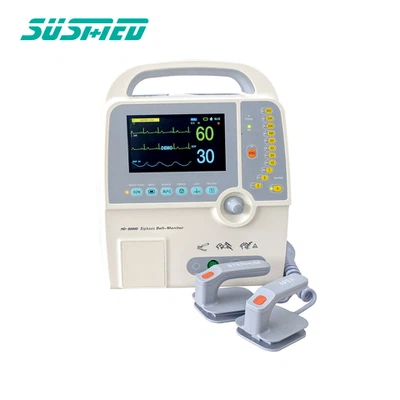

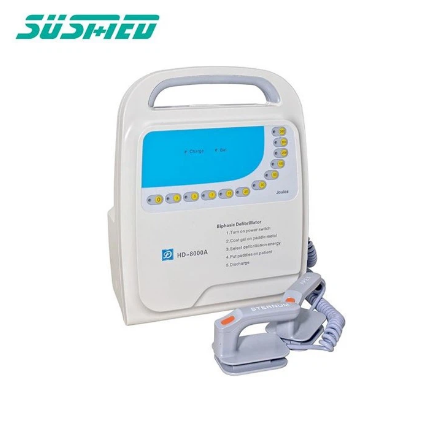

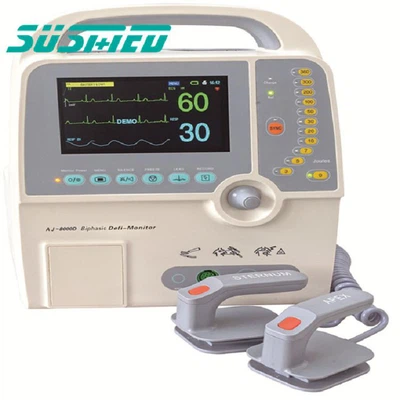

Medical Equipment Portable Monophasic Biphasic AED Automated External Defibrillator
Technical specifications
Defibrillator
(1) Defibrillator type Manual, Synchronized, A synchronized,
(2) Output waveform Monophonic technology /Biphasic technology (optional)
(3) Energy accuracy ∠+1%
(4) Energy selection 0,3,5,7,10,20,30,50,100,200,300,360 joule(nominal at a resistance of 50)
(5) Charging time Maximum 8 seconds to 360 Joules
(6) Standard Adult/Pediatric Paddles Reusable external adult paddles (pediatric paddles integrated)
Power requirements
(a) AC Power supply 110V, 60 Hz /220V, 50 Hz
(b) Vehicle Voltage DC 12V
Internal Battery Backup
(1) Battery type Rechargeable lead-acid battery/ lithium battery (optional)
(2) Charging time Time-Minimum of 4 hours for full charging
(3) Battery charging During AC Power Supply operation of the device.
(4) Charging /Low Battery Indication Red LED
(5) Battery Capacity 100% of the battery will provide 120 min of monitoring; and 30 discharges at 360 joules.
Display: LED Dimensions 7’diagonal {155mm*88mm}
Type: High resolution true-color graphic LED
(1) CLEAR BUTTON Clear the energy selection and discharge the energy by inside circuit.
(2) CHARGE To indicate charging process for the defibrillator battery. The lamp went out if full capacity.
(3) BATTERY INDICATOR To show the DC work of inner battery.
(4)DEFIBRILLATING ENERGY INDICATOR
(5) ENERGY SELECTOR To select the energy of the heart defibrillating treatment.
Optional parameter
Bipasic
Dimensions: L320xW205xH410
Weight: 9.8kg
|
|
|
|
